Material Handling System

Transporting & Loading

Typical handling functions are transporting and moving PCBs and products as well as the change of the orientation in the room to vertical and horizontal level (traffic control). All stations fulfill an important function as connecting link between various components within a production line.
Specifications:

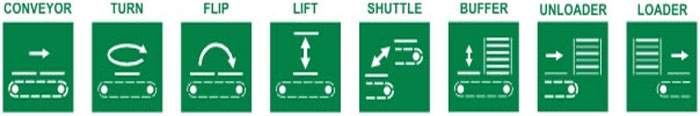

Transporting

• Loading and unloading

Buffering

• Rotating

Turning

• Vertical transfer

Horizontal transfer

• Personnel passages

The handling stations are used in SMD lines, assembly and test lines. The combination of the transport widths, magazine types and interfaces is customer-specific, and components, e.g. soldering processes or vision system can be integrated as required.




General characteristics:

PCB Handling

• Compact design

• Focus on safety

• Consistent design

• High operator convenience

Design according to CE, ESD and accident prevention regulations

• Choice of communication interfaces

• Powder-coated surfaces

• Manual or automatic width adjustment
